Lutron GRAFIK Eye QS Multi-Zone Controls in Austin
Multi-zone preset dimmer with shade control and an OLED display.

One wall unit that dims several lights and runs shades

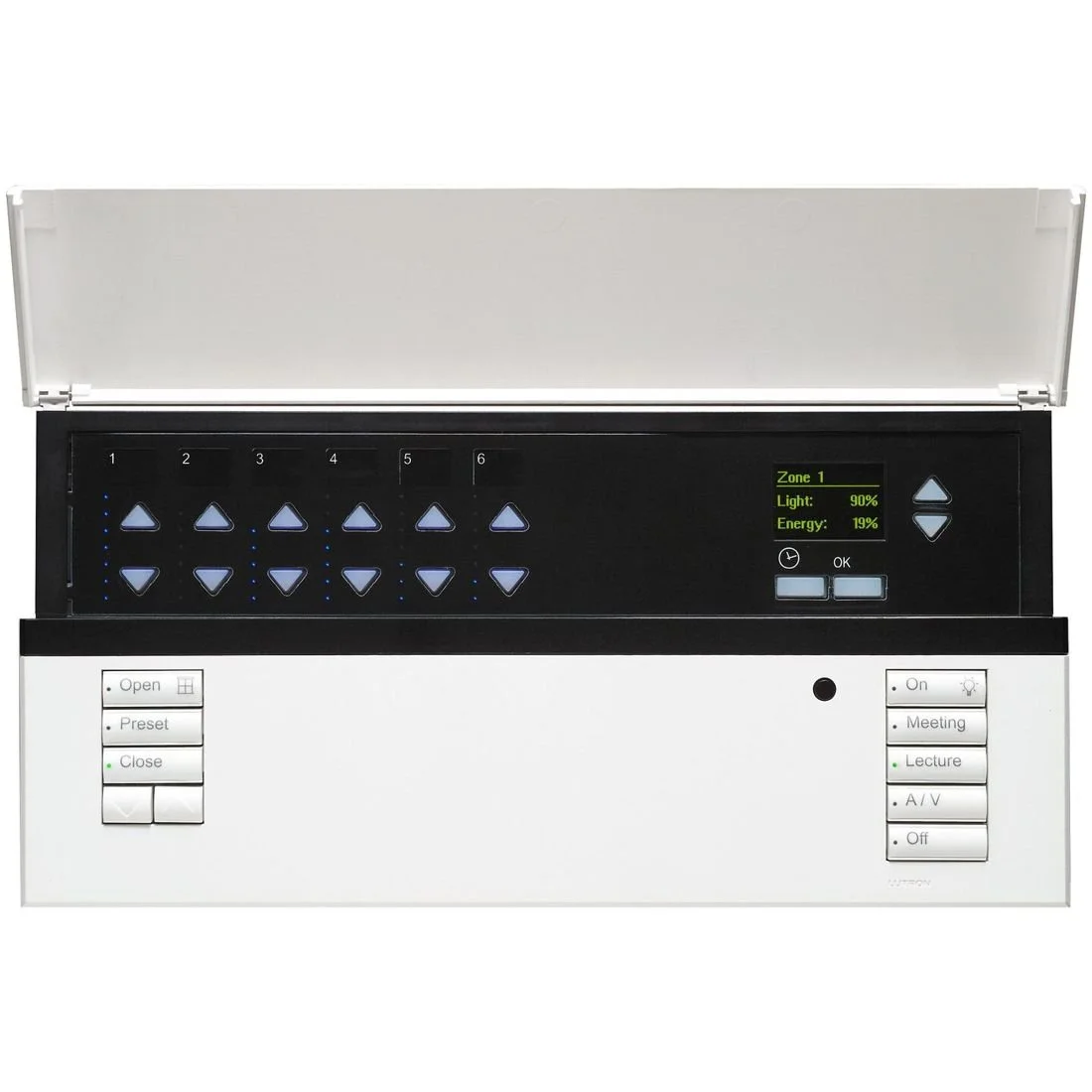

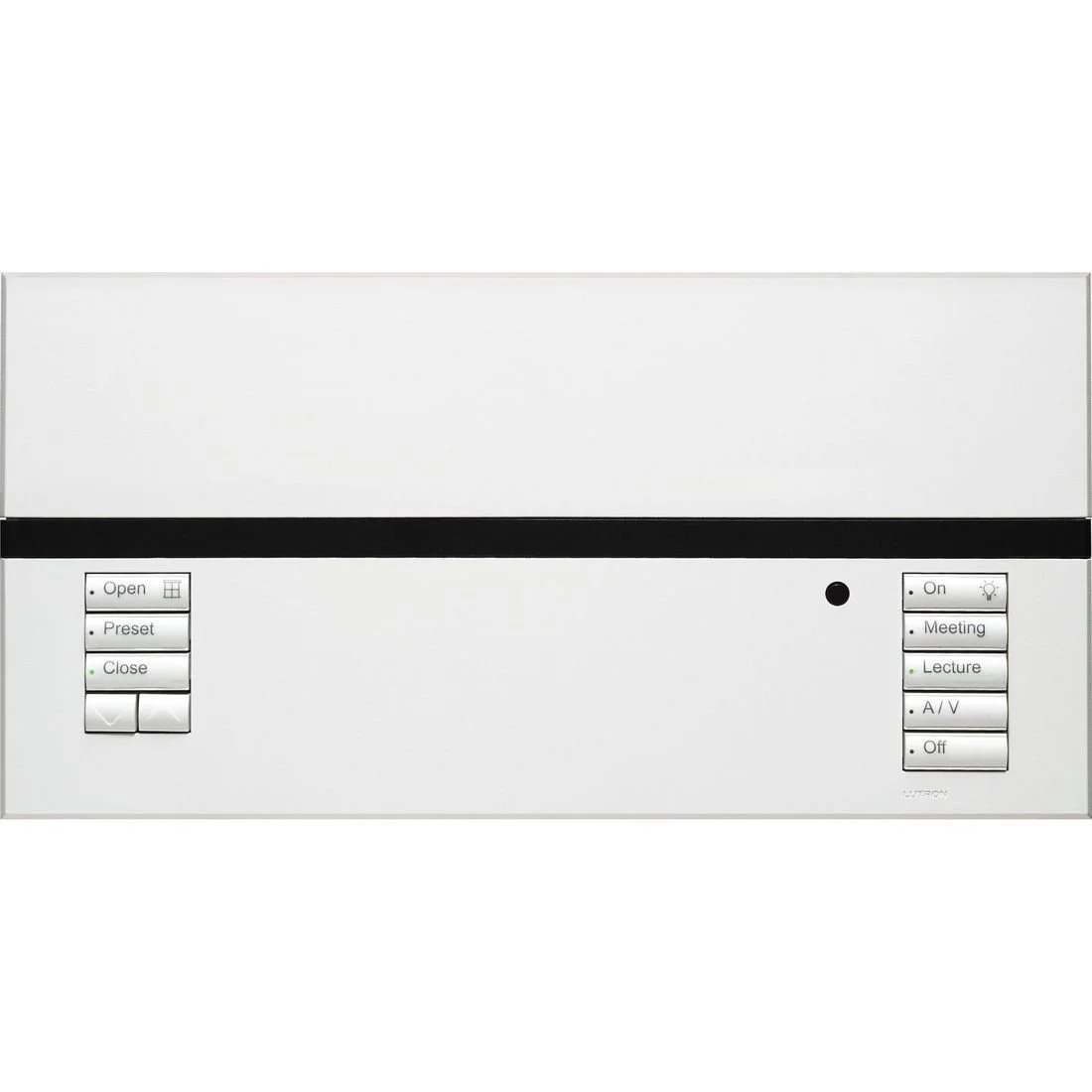

GRAFIK Eye QS is a multi-zone preset control and dimmer in one wall unit. Per Lutron it has an OLED display, four backlit scene buttons, and optional shade columns, and it can control up to six zones of light (Lutron GRAFIK Eye QS page). Press a scene button and every zone and shade moves to its saved level.
3, 4, or 6 zones
Models control 3, 4, or 6 zones of light directly from the unit, up to 800 W per zone at 120 V.
Shade columns
Add 1 to 3 shade columns with Open, Preset, and Close buttons for up to 3 shade zones.
OLED display
Shows zone levels, labels, and status. It switches off after 30 seconds and can be locked out.
16 scenes
Four scene buttons on the face; Lutron lists 16 total scenes programmable at the unit.
Rooms with many light layers
One GRAFIK Eye QS can run recessed cans, cove, pendants, and the shades in the same room from a single wall location. That suits great rooms, media rooms, home theaters, kitchens with several light layers, and offices. Because it is a dimmer as well as a control, it also lets you set levels without a keypad on every circuit. For a full home theater, see home theater design from Smarter Homes.
It is a large wall unit, about 9.4 in wide, so we plan its location during the lighting design rather than after. For smaller rooms that need only scenes, a Architrave, Signature, or Alisse keypad is often a better fit.

GRAFIK Eye QS: 37 finishes in four families
Lutron lists these finishes in the GRAFIK Eye QS specification. Metal and satin color finishes are faceplate kits only, so we confirm availability and lead time when you choose. Lutron does not publish a separate photo for each color, so we show the real chips in the showroom (book a visit). The tag under each finish shows which other Lutron lines list the same finish name.
Architectural matte (8)
Architectural metal, faceplate kit only (8)
Anodized aluminum (3)
Satin color (18)
Codes are from the Lutron GRAFIK Eye QS specification. Overlap is by identical finish name; confirm with a chip before matching.
Size, loads, and boxes
| Item | Lutron says |
|---|---|
| Size | About 4.69 in tall, 9.38 in wide, 2.38 in deep |
| Wallbox | Standard 4-gang U.S. wallbox, 3 in deep recommended (Lutron P/N 241400), sold separately |
| Clearance | At least 4 in above and below the unit for cooling |
| Capacity at 120 V | 2000 W per unit, 25 to 800 W per zone |
| Loads | Incandescent, LED, tungsten halogen, ELV and magnetic low-voltage, and Lutron Tu-Wire fluorescent ballasts; LED compatibility varies by fixture |
| Higher loads | Lutron power modules for higher wattage or 277 V; 0-10 V loads need a Ten Volt Interface |
| Wiring | Line voltage terminals take one 12 AWG wire; low-voltage QS link or wireless Clear Connect |
| Systems | Lutron lists HomeWorks |
| Rating | Indoor use only; cULus listed |
Dimming behavior depends on the LED fixtures, so we check each load and confirm dimmability before rough-in. Lutron does not list RadioRA 3 for this unit.
Get your price for your project
We price GRAFIK Eye QS controls to your finishes, counts and engraving. Book a showroom visit or call 512-775-6101 and we will put your list together.
Other finishes and extra shade columns
Order a QSGFP faceplate kit to change finish or add shade columns. We confirm every finish for your project.
Clear anodized shows about a 60-business-day lead time. Most others show about 15.
GRAFIK Eye QS or keypads
A GRAFIK Eye QS is the choice when one room has several circuits to dim and you want a single control point with a display. Keypads such as Sunnata, Palladiom, and Aviena send scene commands to dimmers elsewhere. Many homes use both. See HomeWorks QSX and the Lutron lighting overview for how the pieces fit.
Bring a plan or photos of the room and we will help you decide.
GRAFIK Eye QS FAQ
What is a Lutron GRAFIK Eye QS?
A multi-zone wall-mounted preset dimmer and control unit with an OLED display, four scene buttons, and optional shade columns.
How many zones does it control?
Models control 3, 4, or 6 zones of light, and shade columns add up to 3 shade zones.
Does it work with HomeWorks?
Lutron lists the GRAFIK Eye QS for HomeWorks systems.
Can it control shades?
Yes. Add 1 to 3 shade columns, each with Open, Preset, and Close buttons.
What wallbox does it need?
A standard 4-gang U.S. wallbox, with 3 in depth recommended and 4 in clearance above and below.
Can I change the finish later?
Yes. The faceplate is a separate kit that snaps on with no visible fasteners.
Does it dim LED lights?
Yes, with compatible LED fixtures. We check each load before rough-in.
