Palladiom Shades in Austin
Exposed brass and aluminum roller shades, wired or wire-free, designed and programmed by Smarter Homes with matching keypads and lighting.
Palladiom shades come wired or wire-free
Palladiom is Lutron's exposed-hardware roller shade, with milled and hand-finished aluminum and brass brackets on a 2-inch tube. We design, supply, and program Palladiom, and match it with Palladiom keypads. Choose a Palladiom fabric, size, and finish in the Motorized Shade Designer. For drapery on a matching exposed rod, plan the track, stack, and drive in the Drape Planner.
| Wired Palladiom | Wire-free Palladiom | |
|---|---|---|
| Power | 35V low-voltage wiring | Up to six D-cell alkaline batteries (not included), typically 3 to 5 years |
| Control | Wired QS link | Clear Connect Type A RF, 30 ft range |
| Width | 20 to 144 inches | 21 to 144 inches |
| Height | 24 to 168 inches | 12 to 144 inches |
| Systems | HomeWorks QSX | HomeWorks QSX, RadioRA 3, RadioRA 2, RA2 Select, Caseta |
| Best fit | New construction and full remodels where wire can reach the window | Finished homes, or rooms where wire is impractical |
Sources: Lutron wired Palladiom, Lutron wire-free Palladiom.
Hardware you are meant to see

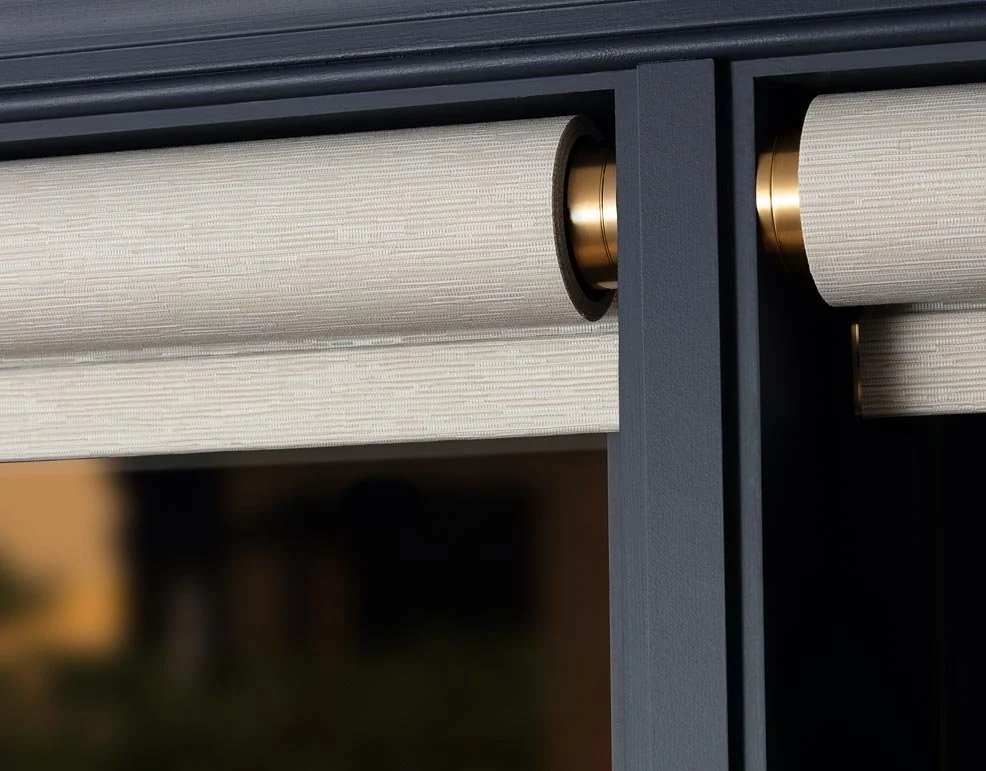

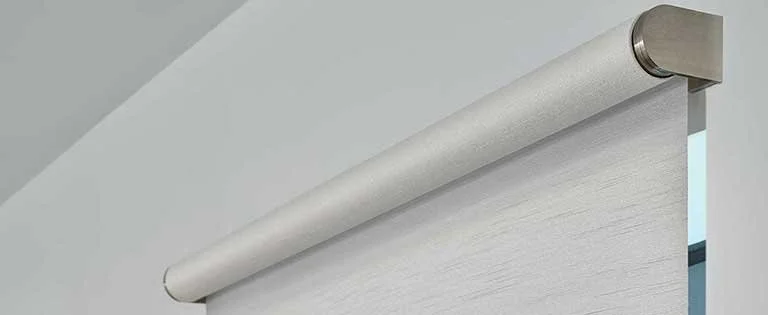

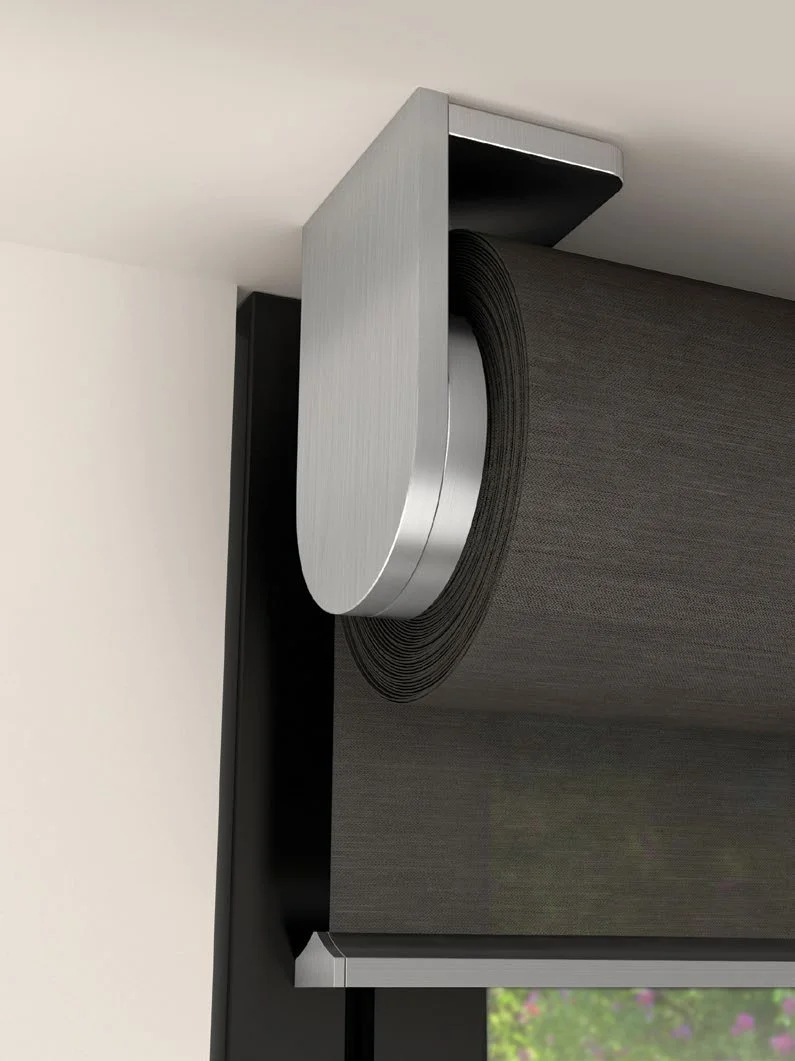

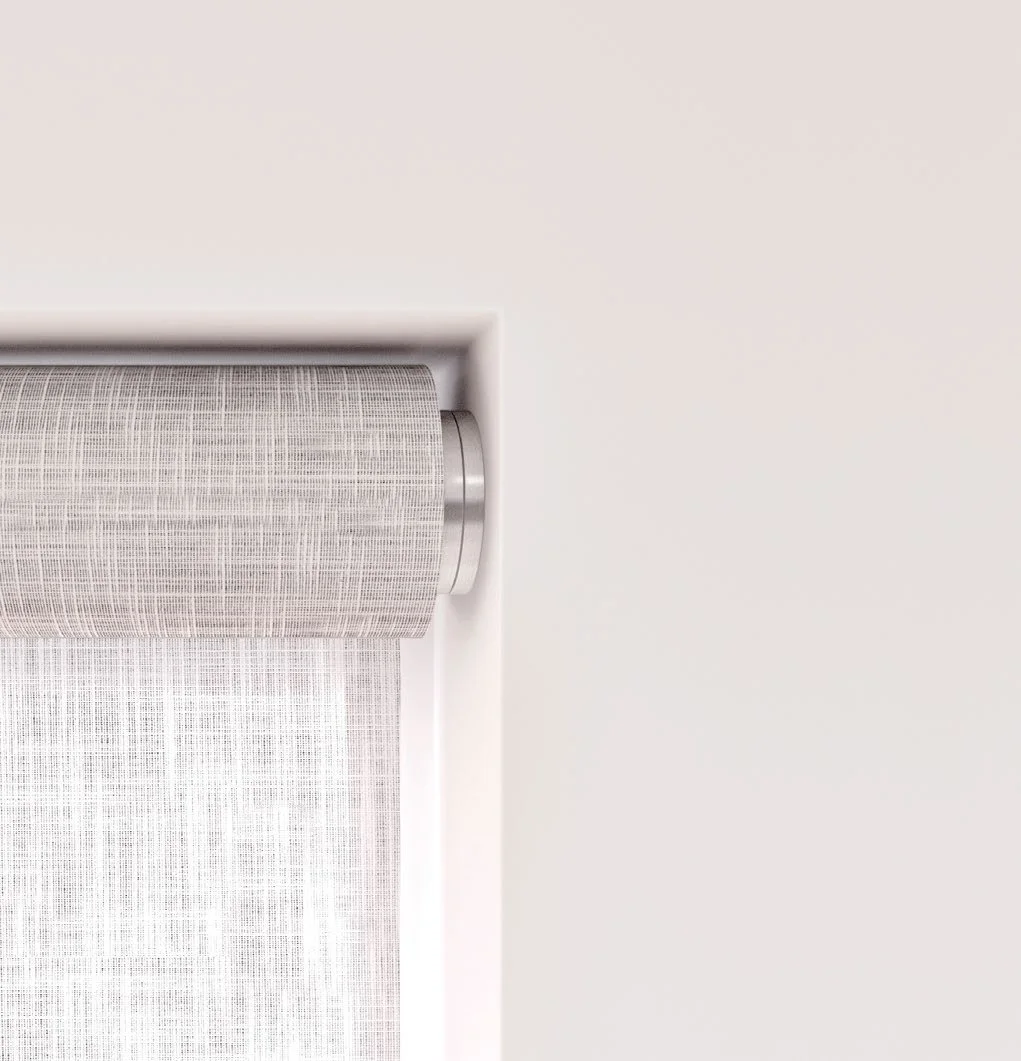

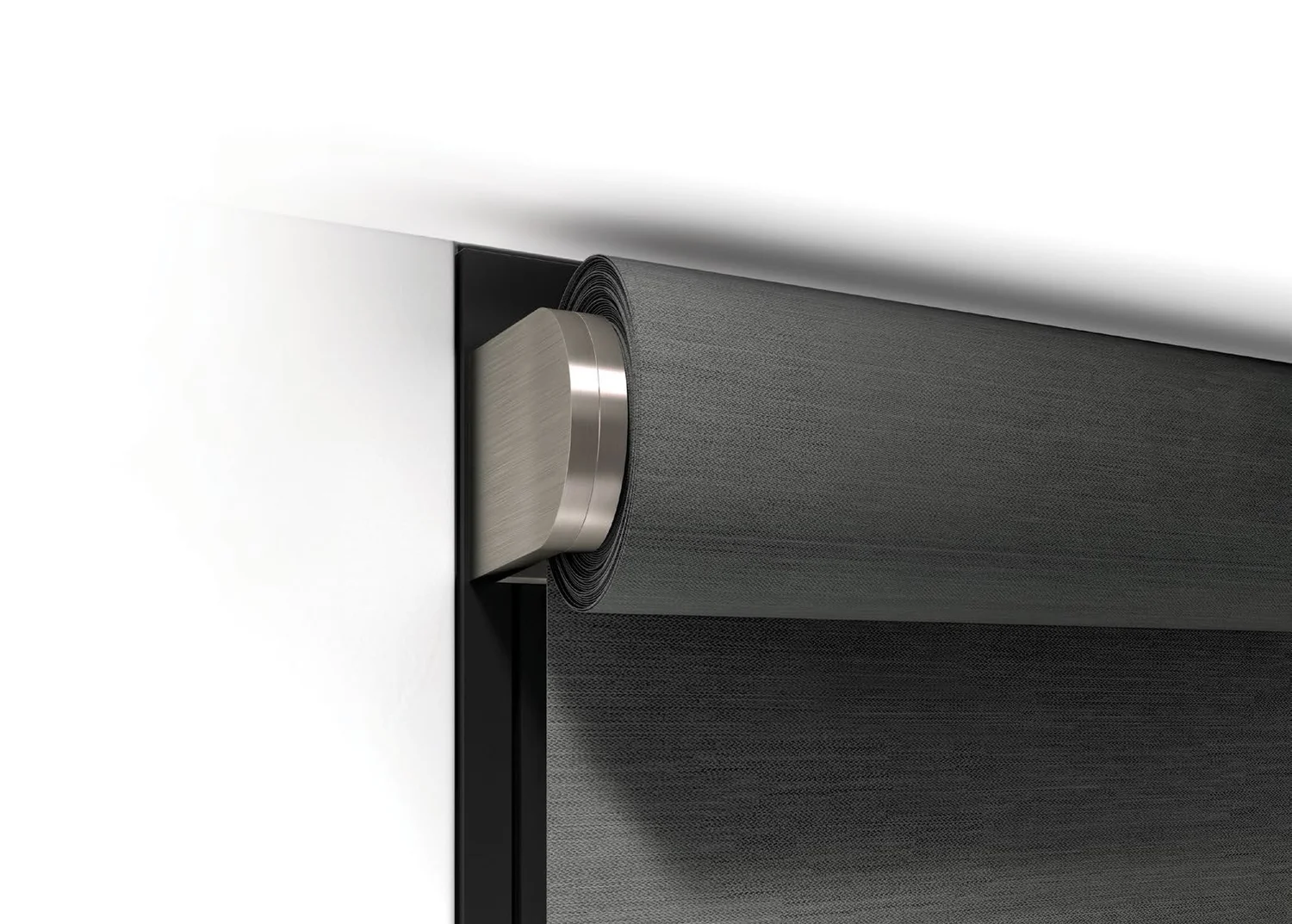

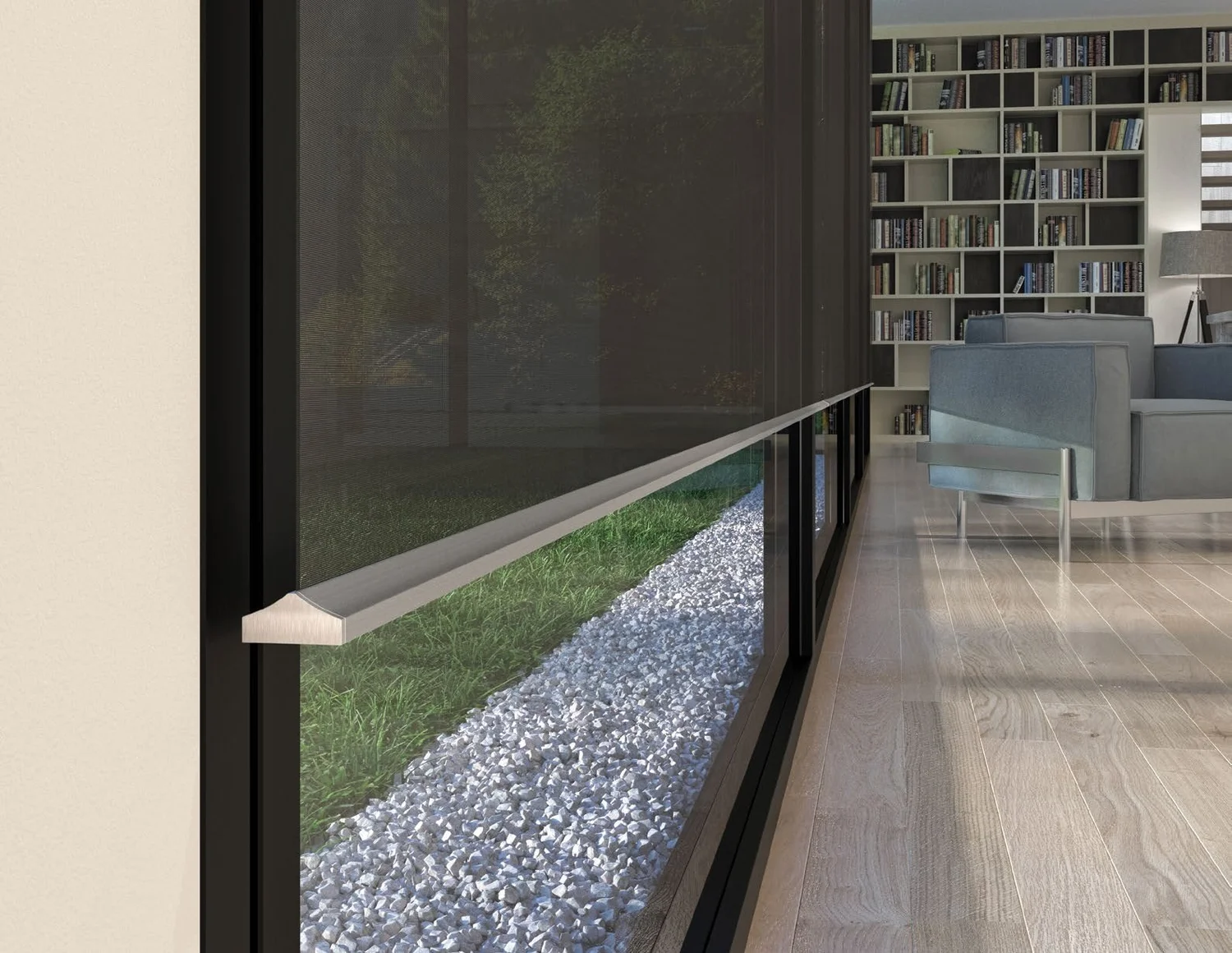

Brackets and hembars are milled from solid aluminum or brass and finished by hand, so the shade reads as an architectural object. The curved hembar mirrors the fabric roll.
Adjacent shades stay level with Intelligent Hembar Alignment. Palladiom shades cannot be mechanically coupled, so each shade has its own drive, and a center bracket can create a coupled look. Compare with Sivoia QS and Triathlon.
Aged Bronze hardware, three fabric families
Roller shade brackets and endcaps come in Aged Bronze. Fabrics are light-filtering, privacy, and blackout.
| Option | Choices | Notes |
|---|---|---|
| Bracket and endcap | Aged Bronze | Milled aluminum or brass, hand finished |
| Fabrics | Light-filtering, privacy, blackout | Mix by room: sheer in living areas, blackout in bedrooms |
| Matching keypads | Champagne, Matte Graphite (Signature Metals) | Palladiom keypads share the same materials; see Palladiom keypads |
Where Palladiom works hardest

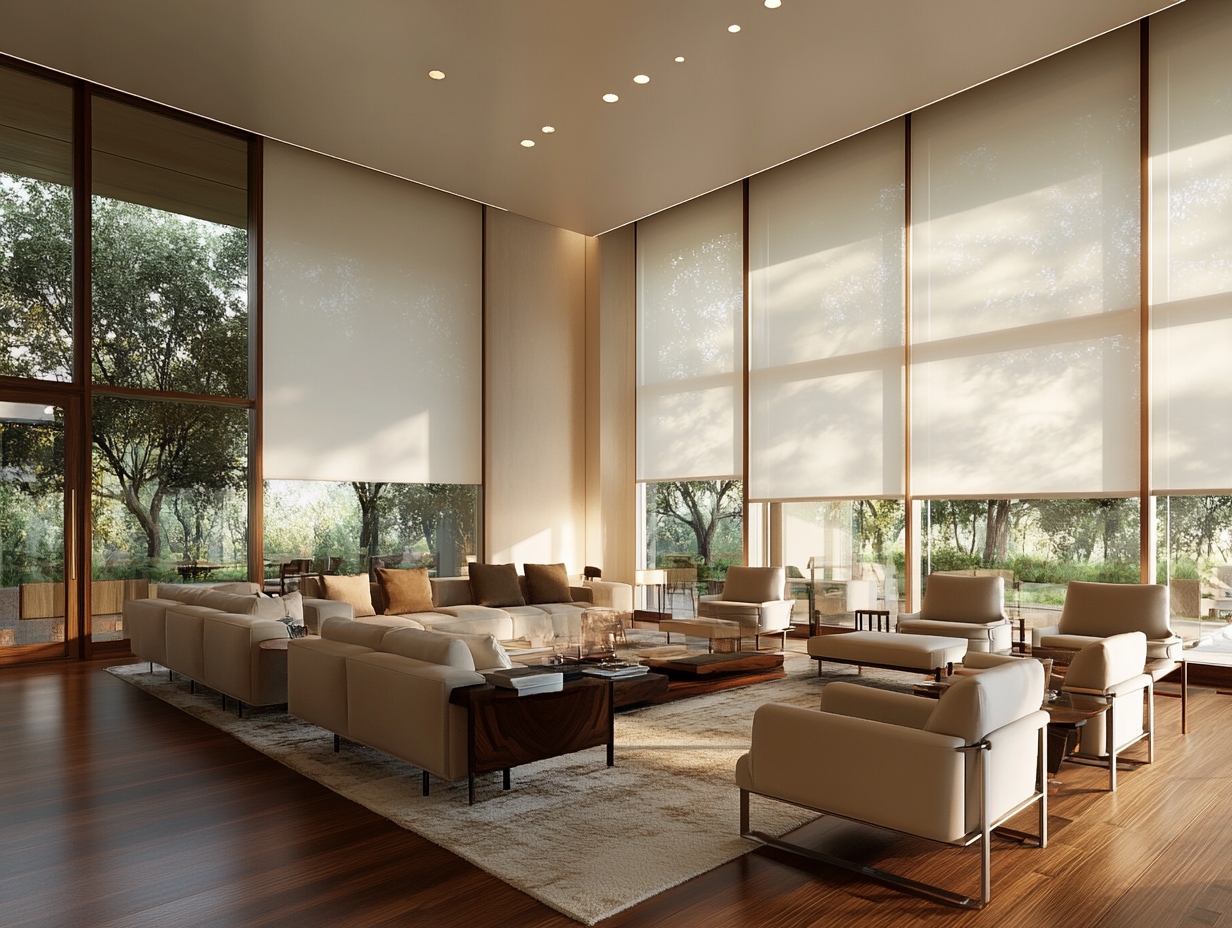

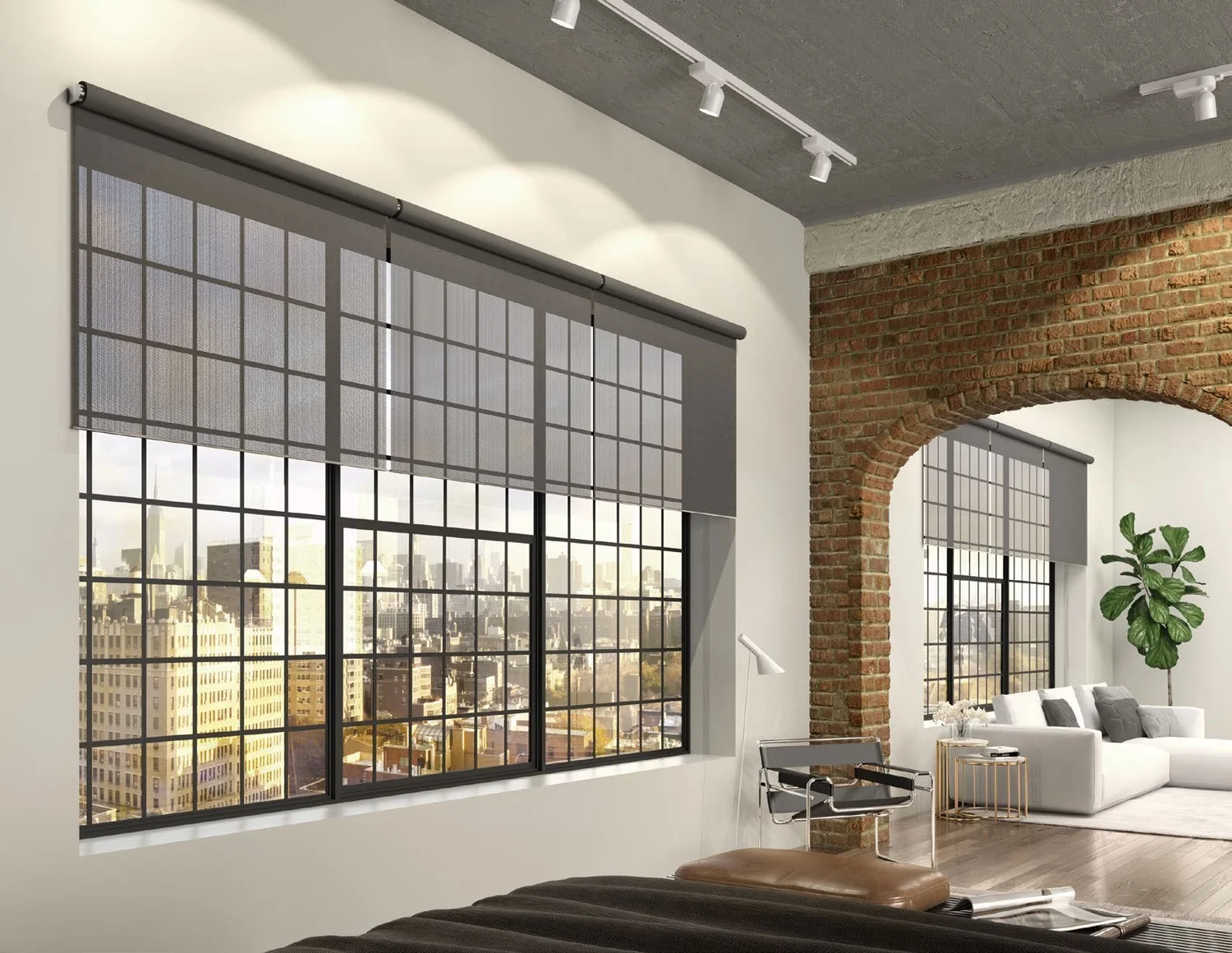

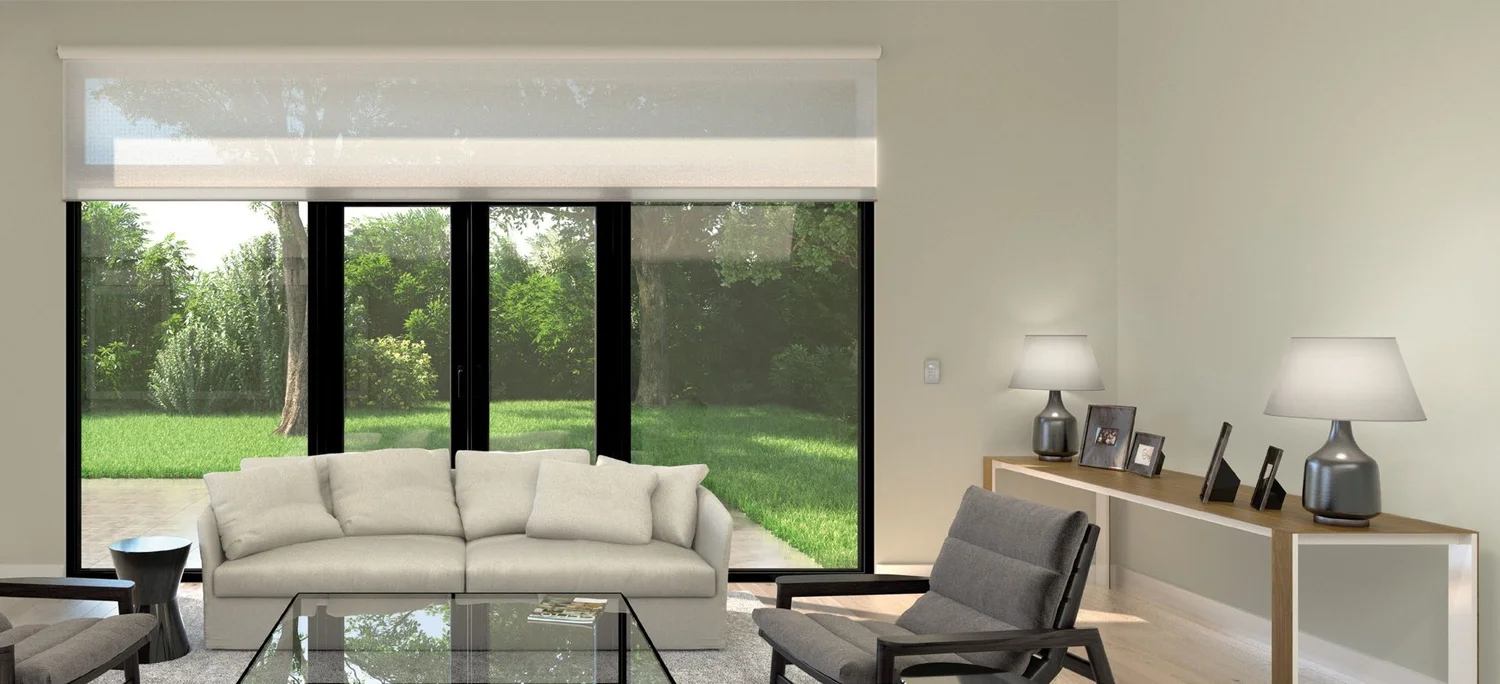

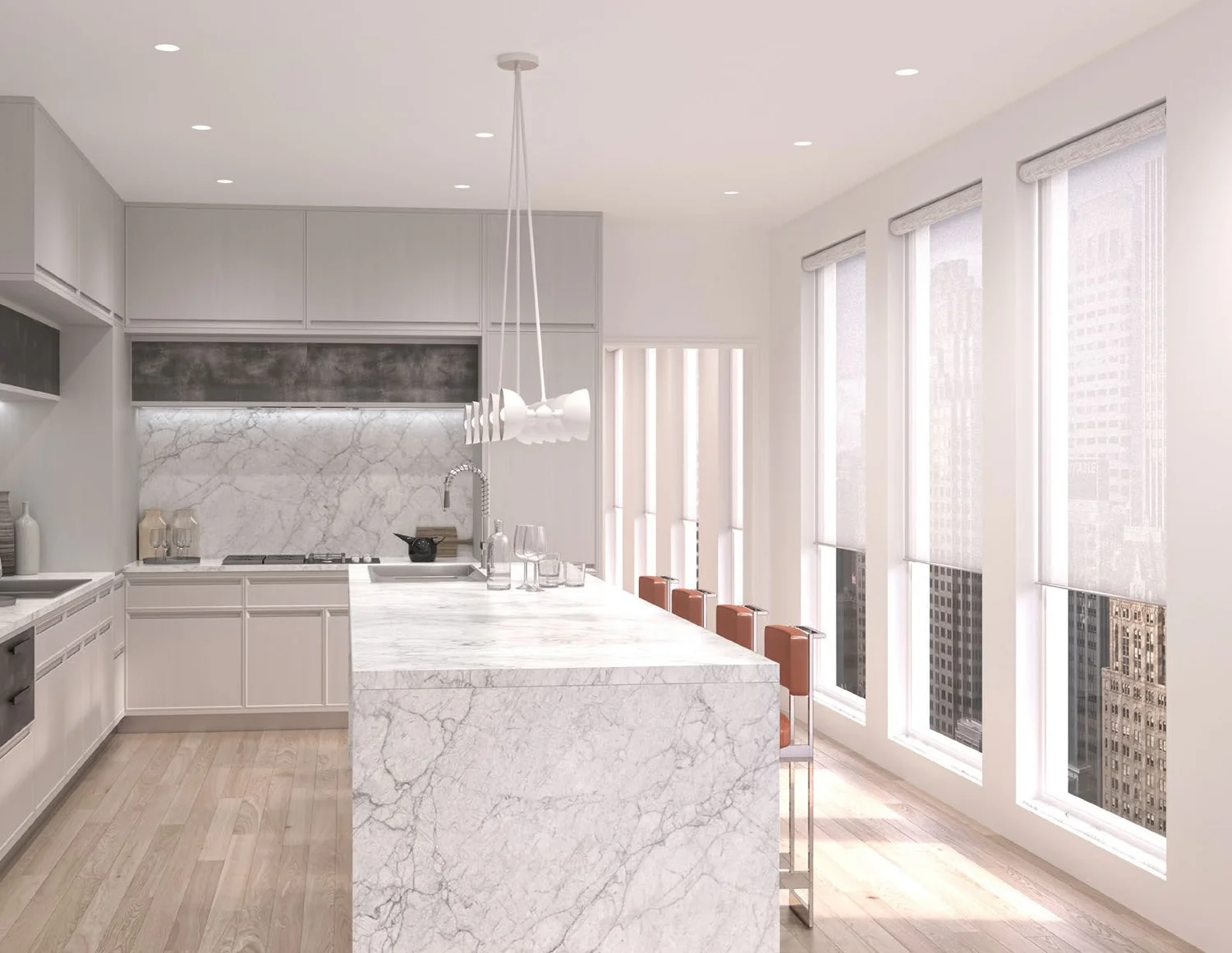

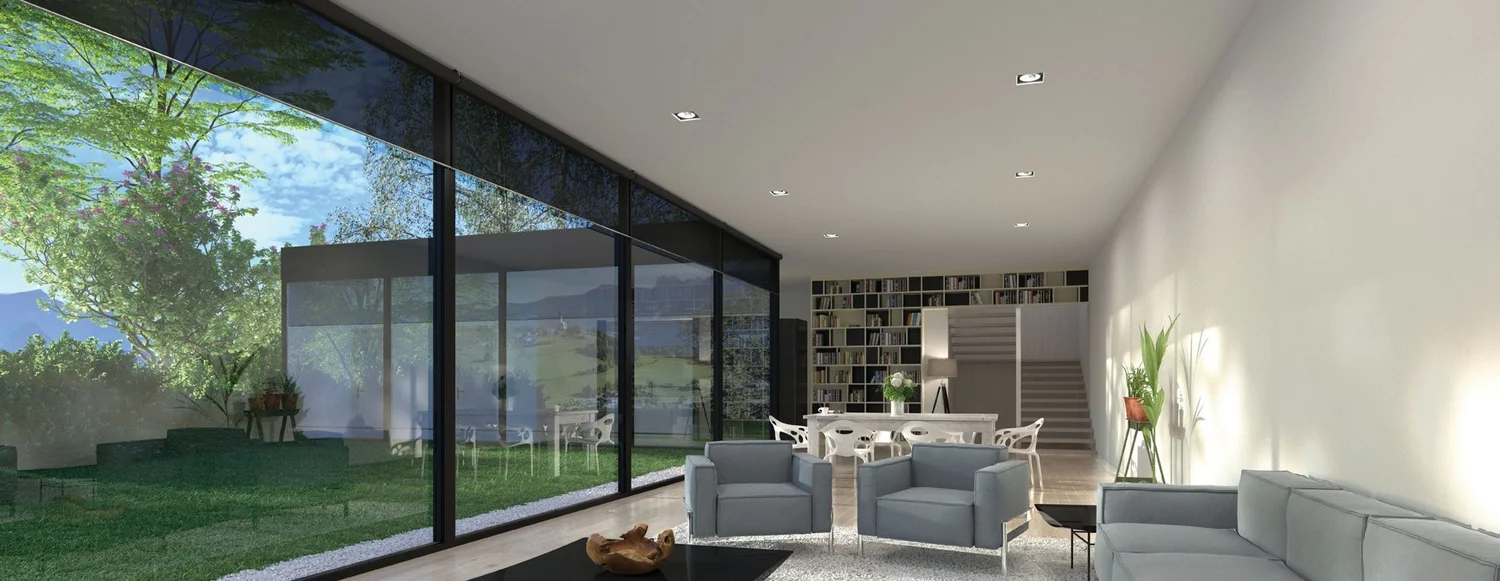

Tall glass, kitchens, and steel windows are where shade hardware shows. We plan shade, lighting, and keypads together so a room moves as one scene.
Quiet motion, scenes from keypads, the Lutron app, schedules, and voice, and sun-following automation reduce glare and heat gain. See a Spicewood home with sheer shades and hidden systems, and our service areas.
Palladiom shade FAQ
What is the difference between wired and wire-free Palladiom?
Wired Palladiom is powered and controlled over low-voltage QS wiring at 35V. Wire-free Palladiom runs on up to six D-cell batteries and uses Clear Connect RF. Both look the same.
How long do Palladiom batteries last?
Lutron lists a typical life of 3 to 5 years, depending on shade size and use.
Does Palladiom work with RadioRA 3?
Wire-free Palladiom is listed as compatible with HomeWorks QSX, RadioRA 3, RadioRA 2, RA2 Select, and Caseta. The wired version is for HomeWorks.
Can Palladiom shades share a drive?
No. Each shade needs its own drive. A center bracket can give a coupled look.
What fabrics and finishes are available?
Light-filtering, privacy, and blackout fabrics, with Aged Bronze brackets and endcaps.
How is Palladiom different from Sivoia QS and Triathlon?
Palladiom has exposed brass and aluminum hardware and comes wired or battery. See Sivoia QS and Triathlon.
Does Smarter Homes install Palladiom?
We design, supply, and program Palladiom shades as part of a Lutron shade and lighting plan. The images on this page are Lutron images, not our projects.
Can I see Palladiom in person?
By appointment in our West Lake Hills showroom. Book a visit or call 512-775-6101.
Planning Palladiom shades?
Smarter Homes Lutron Showroom5524 Bee Caves Rd, Unit J8
West Lake Hills, TX 78746
512-775-6101
Showroom visits are by appointment. Bring your plans and we will map products, wiring, and scenes to your floor plan.
