Imagine transforming your living or workspace with just the touch of a button. You get perfect lighting, instant privacy, you know, effortless elegance. But what really goes into making that vision a reality?

Today we're diving deep into the world of smart window treatments, specifically Lutron Savoya QS systems. Yeah, our mission today is really to pull back the curtain, so to speak, on these advanced shading solutions.

We'll explore the core components, the intricate installation details, and the clever ways these systems are controlled. And all of this comes from, well, a whole stack of technical documents, spec sheets, installation guides, the real nitty-gritty stuff.

Exactly. Think of this as your shortcut, maybe, to understanding not just what these systems do, but how they achieve that seamless cry-it operation. Yeah. And, you know, the surprising details that make sure they integrate beautifully into any space.

It's definitely more than just sticking a motor on a blind. It's like precision engineering that really elevates your environment. Okay, let's unpack this. So we're looking at a system that promises, you know, seamless control, quiet performance, and at the heart of each individual shade, there's something called the electronic drive unit, or EDU.

Sounds pretty crucial. What exactly does it do? It truly is the intelligence of the system, yeah. Yeah. The EDU is what lives inside each shade, and it directly controls its movement. But it's much more than just a motor.

It actually tracks the shade's exact position. This ensures it consistently adjusts to your desired presets with incredible accuracy, often within a mere 0.125 inches. That's about three millimeters.

Wow. This isn't just some technical spec either. It's what guarantees that if you have, say, a whole wall of windows, every single shade goes down or up in perfect unison. Okay, I see. That kind of seamless precision is, well, it's what makes a space feel really refined, you know?

It avoids that jarring look of misaligned shades you sometimes see with lesser systems. An eighth of an inch precision across multiple windows, that sounds fantastic. But for a whole system, you need more than just individual smarts, right?

You need like a central nervous system. How does Lutron tackle that challenge, powering and coordinating multiple shades, especially in a big space? Right. That's where the 10-output configurable smart panel comes into play.

What's fascinating here is how the system scales and scales efficiently. The smart panel, it acts as the central hub. It's capable of powering up to 10 individual outputs. 10 outputs, okay. And these aren't just for shades.

They can power drapery drive units, keypads, other Lutron QS devices, too. It cleverly uses these plug-in power supply modules, W-I-N-PS5CCR, I think is the model. They're sold separately, mind you. Okay.

But that's how it reaches its full 10 output capacity. So it allows for really flexible configuration based on your specific needs. So it's essentially a smart power and control distribution unit for your window treatments, making sure everything runs smoothly without needing tons of individual power outlets for each shade.

I also noticed the system uses something called NC Class II PLV outputs, and it even has smart diagnostics. What are the benefits of those for you, the user? Both are really critical features. First, that NT Class II PLV designation that's key for safety and honestly, ease of installation.

When we talk about those standards, it means the system runs on extremely low voltage, safer than even like common household appliances. This not only makes them incredibly safe to work with, but it also simplifies the installation, often reduces the need for specialized high-voltage electricians.

Which can be a big deal. Oh, yeah, absolutely. A significant advantage in terms of project complexity and cost too. Then you have the smart diagnostics. They're really designed to cut down installation time and simplify troubleshooting.

They can quickly verify if the system communication is working, pinpointing issues before they become major headaches. It just means a smoother setup and hopefully faster resolution if anything ever does go amiss.

That sounds like a huge practical advantage, especially for anyone managing an installation. But that brings up a crucial point. Once everything's powered up, how do all these individual shades and keypads actually talk to each other?

How do they coordinate across the whole system? Yeah, good question. It's all about robust and reliable communication links. The system primarily uses two main types of wiring. There's a four conductor cable, specifically for power and communication.

That's exactly what he says, right? Provides both the power and sends control signals to the QS shades and keypads. Then there's a separate three-conductor communication link. That's used for connecting power supplies to each other or maybe integrating with a broader system like a graphic IQS controller for more sophisticated scene control with lights and shades together.

So they've clearly thought about how everything talks to everything else in a streamlined way. Precisely. And if we kind of connect this to the bigger picture, it really highlights Lutron's integrated approach.

All this wiring, it follows those NEC Class II PLV standards. Strict codes for safety, for performance. This communication link wiring, it allows for up to 100 devices in a single Savoya QS system, and that count includes the panel itself.

100 devices, wow. And with a total wire length not exceeding 2,000 feet, which is, what, about 610 meters, it's a really robust network, designed for incredible reliability, allows all those components, keypads, shades, whatever, to communicate and be controlled seamlessly, even across a really large property.

It just ensures that when you press a button, every single shade responds exactly as you expect every single time. Okay, we've established the robust backbone of the Savoya QS system, the power, the communication.

But of course, the part you actually see and interact with day to day are the shades themselves. So let's explore the variety Lutron offers here. Our sources detail, let's see, Roller64, Roller100, Roller 300, horizontal shear blinds, and drapery systems.

What makes each one unique? How would someone choose? Good question. Each system is really meticulously tailored for different needs, different aesthetics. Let's start with the Roller 64. This one is often picked for its ultra-quiet operation.

Like you basically won't hear it moving. Seriously quiet. Yeah, we're talking a noise level not exceeding 35 dBA, measured just three feet away from the drive unit. To put that in perspective, that's quieter than a whisper.

So it makes it ideal for bedrooms, studies, maybe meeting rooms where absolute silence is, you know, paramount. It's also incredibly versatile, handles widths up to eight feet, or even an impressive 12 feet for the WIDR version.

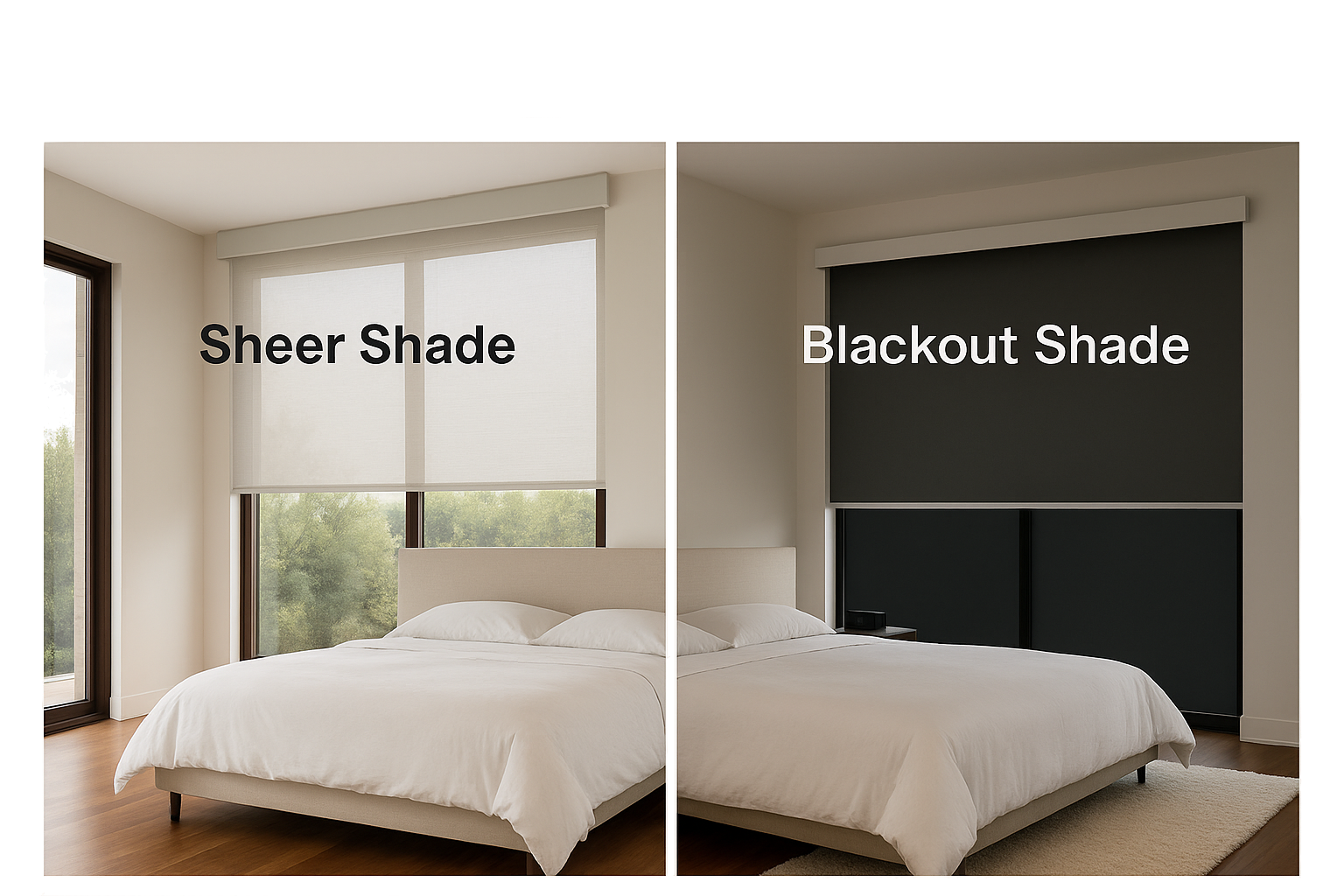

12 feet, okay. Yeah, so suitable for standard windows, even large sliders. And of course, you get your choice of fabrics, sheer, privacy, room darkening, the usual options. So virtually silent, even in a quiet room, covers pretty big openings.

That's a strong start. How does the Roller 100 compare then? Is it just like a bigger version? Though the Roller 100, yeah, it does step up the capacity a bit. It handles a maximum of 100 square feet of fabric per EDU.

It has a slightly higher noise level, 38 dBA. Still incredibly quiet though, just a tiny bit more than the 64. But the real standout feature, I think, for both the Roller 64 and the 100 is something called Intelligent Hembar Alignment, or IHA.

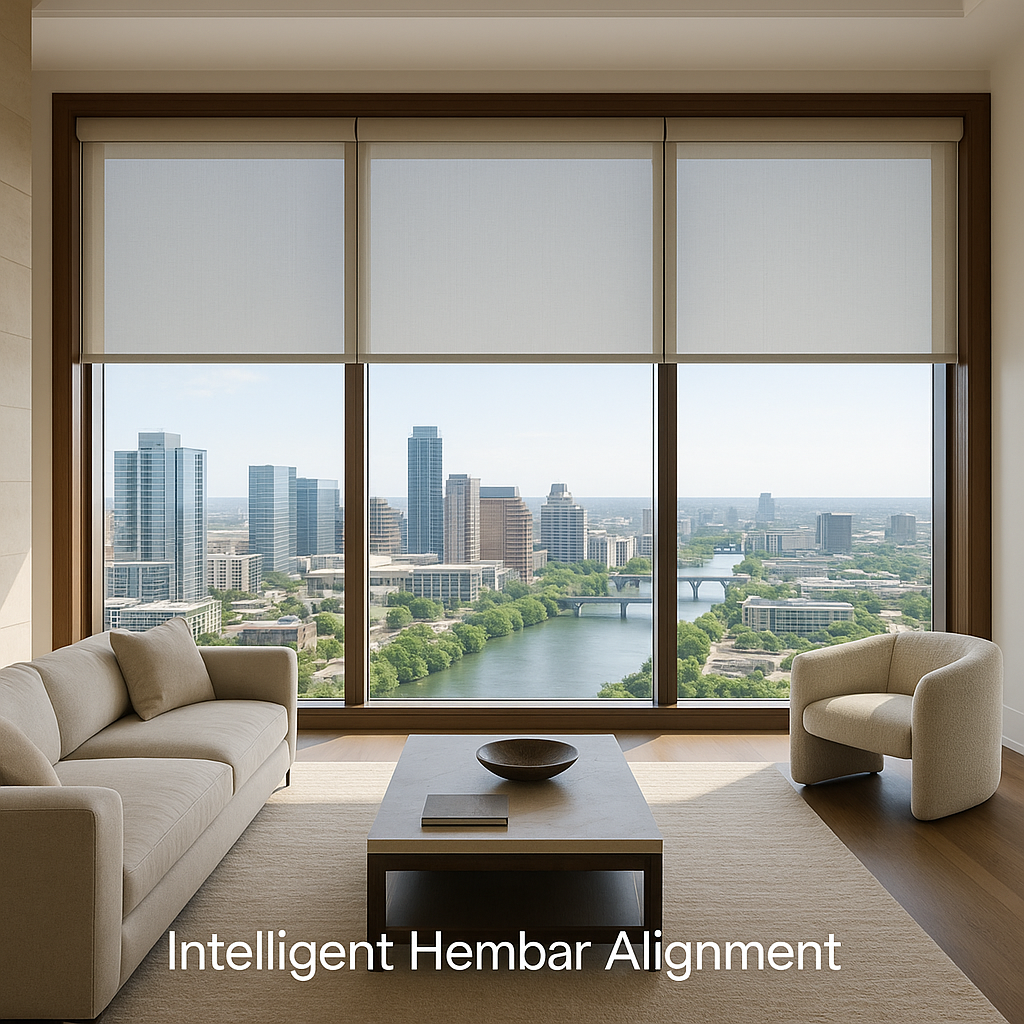

IHA. This tech is specifically designed to keep multiple shades perfectly aligned within that precise 0.125 inches we mentioned earlier, whether they're stopped at a preset or even while they're moving.

Ah, okay, so even while moving, they stay aligned. Exactly. Which is crucial for achieving that really pristine, uniform look across, say, a bank of windows. Imagine walking into a room, six windows, and every single shade is exactly the same height.

It's that level of detail that, well, it makes a difference. That intelligent hem bar alignment. Yeah, that's impressive. Visual perfection, basically. And then there's the powerhouse, the Roller 300 Lift-T system.

What kind of applications is that beast designed for? The Roller 300 is built for grandeur, really. It's designed for the larger applications. Supports up to 300 square feet of fabric. So think massive floor-to-ceiling windows, maybe in a double-height living room or a big commercial space.

Huge windows. Exactly. It operates at a linear speed of 3.6 inches per second, so it moves those substantial fabrics pretty efficiently. Noise level doesn't exceed 50 dBA, which is still quite respectable for its size and power.

And the unique application for the Roller 300 is for chloristory shades. Chlorostory, you mean those really high-up windows? Precisely. Those incredibly tall windows you often find way up high, maybe 20 to 30 feet in height.

These applications require specialized brackets designed to bear immense loads up to 1,000 pounds each. 1,000 pounds per bracket. Yeah. And they might even use up to two battens, these reinforcing bars, for added stability, depending on the shade's height and size.

It's a real testament to the robust engineering behind these things. Wow, 1,000 pounds. That's serious stuff for those big architectural statements. And speaking of multiple shades, you mentioned all three roller systems can be coupled.

What does that mean for the user? Say, if you have a really, really wide window? Coupling, yeah. It's a clever solution for those very wide expanses. It lets you drive up to six individual shade panels with a single electronic drive unit.

Just one EDU for six panels. Exactly. Which significantly increases efficiency, right? Reduces the number of electrical connections needed, simplifies the overall system wiring. Our sources specify a minimum 1.5-inch light gap between the coupled panels.

But even with that small gap, the intelligent hem bar alignment, the IHA, ensures they move and stop in perfect unison. Ah, so the alignment still works across coupled shades. It does, which is incredibly important for maintaining that clean, consistent look across massive windows, or maybe even an entire glass wall where visual continuity is just paramount.

It really streamlines the look and the operation for those larger installations. Makes sense. Okay, so beyond rollers, our sources also cover drapery systems. Lots of people love the softer look of drapes, but motorizing them sounds like it could be quite elaborate to install, given the precision needed.

You're right to highlight the precision. For drapery systems, the track has to be absolutely perfectly level. That's to ensure smooth, even operation, prevent any binding or uneven movement. And just like the roller shades, the wall mount brackets, they need installation into structural members' studs, blocking not just drywall.

Right, for support. Exactly. To securely support the weight and the dynamic forces of the moving drapery. What's particularly thoughtful about Lutron's drapery systems, though, is the manual open feature.

Manual open. Yeah, it lets you physically open or close the drapes by hand, even if there's a power failure or maybe if someone just isn't aware they're motorized. It even includes adjustable tension so you can prevent accidental disengagement, especially with heavier, more luxurious fabrics.

That's a fantastic practical detail. Addresses real-world situations. It really does. It's a great blend of smart tech and just practical user-friendliness. Definitely. What about the horizontal shear blinds and the trif on roller shades?

How do those fit into this Savoya QS ecosystem? Okay, so the horizontal shear blinds, they offer a more nuanced kind of light control, right? Their EDUs and optional RF receivers, they require some intricate wiring.

The docs specifically note that terminals three and four are strictly for wired control and communication, not for wireless signals. Okay, so dedicated terminals. Yeah, which means they integrate deeply into the wired part of the system, ensures robust control over their, you know, delicate light filtering abilities.

They're excellent for spaces where you want to keep a view, but maybe gently diffuse harsh sunlight. Offers a different aesthetic, different function than a standard roller. Then you have the triathlon roller shades.

These offer incredible versatility. The key word here is choice. You can opt for wired power for ultimate reliability or battery power. Exactly. Battery-powered options for easier, less invasive installation.

Especially useful in retrofits or maybe historic homes where running new wires is difficult or undesirable. This flexibility, combined with their compatibility across Lutron's whole ecosystem, SmartBridge, RadioArray 2, Homeworks QS, Pico wireless remotes, 4-group RF remotes, it makes them a practical hero for a huge range of projects.

That's super flexible. Totally. From simple single-room upgrades to complex whole home systems, and they're programmed with just a single shade button, which simplifies the setup. They really fill that niche for ultimate convenience and adaptability.

Okay, so with all these amazing features, all these diverse shade types, getting these systems installed correctly seems absolutely paramount. Paramount to achieving that promised performance, that elegance.

Our sources are just packed with details about mounting, clearances, even specific tools. What are the key takeaways for ensuring a successful install? You've definitely hit on a critical point there.

Across all the shade types, a recurring theme, and it's a fundamental safety requirement, is the need to securely mount those brackets into structural members, things capable of supporting the operating load.

This is explicitly warned against as a risk of falling objects if you don't do it right. Yeah, you don't want shades falling down. Absolutely not. It's not just the static weight, but the dynamic forces when they move.

While, you know, professional installers handle these details, it's good for you to know the level of engineering precision that's required. As for tools, the common things you'd need are like hashtag to Phillip screwdriver, a 14-inch hex head driver, a reliable tape measure, and of course a power drill.

Pretty standard stuff, but crucial. It really sounds like precision and security are top priorities right from the very beginning. And I noticed the sources also detail very specific instructions for preparing the wiring itself.

Why is that level of detail so important? Proper prep of that four-conductor power communication cable, it's absolutely crucial. For the system's long-term reliability, the instructions are super precise.

Strip two inches of the outer jacket, then just a quarter inch of insulation from the individual wires, making sure there's just 116th of an inch of exposed conductor. Okay, very specific. Yeah, and this precision prevents stray wires from potentially shorting out, and importantly, it prevents the insulation itself from getting pinched when you connect it to the four-pin terminal block.

For the wired systems, remember those dedicated terminals 3 and 4, they're specifically for control communication. While the V plus and COM lines, typically 12, 18 gauge wire, along with the MUX, MUX, which is a 22-gauge twisted shielded pair, those handle the power and the sophisticated communication between components.

It's all about maintaining signal integrity and safety in that low voltage environment. That really underscores how much thought goes into preventing potential problems down the line. Beyond the wiring, what about those light gaps and clearances we keep hearing about?

They seem to impact both how it looks and how it works. They're absolutely vital for both, yeah. Aesthetically, precise light gaps give you that clean, finished look, minimize light leakage around the edges.

Functionally, adequate clearance stops the fabric from...
